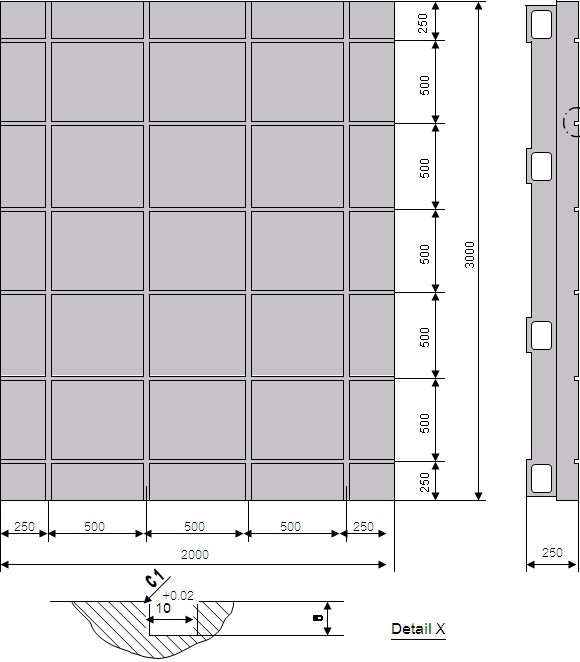

SURFACE PLATE
FOR LAYOUT MACHINE
|
| «Back
1 2 |
| Size |
Flatness Accuracy |
Wight ( kg. ) |
| 1000 x 2000 x 250 mm. |
0.038 mm. |
1400 |
| 1500 x 2000 x 250 mm. |
0.057 mm. |
2000 |
| 2000 x 2000 x 250 mm. |
0.061 mm. |
2600 |
| 2000 x 3000 x 250 mm. |
0.076 mm. |
3000 |
| 3000 x 4000 x 250 mm. |
0.104 mm. |
6000 |
| 3000 x 6000 x 250 mm. |
0.138 mm. |
9000 |
| Item |
Accuracy |
| Distance between grooves |
±0.03 mm. |
| Square of groove |
±0.03 mm./1000 mm. |
| Straightness of groove |
±0.03 mm./1000 mm. |
|
|
|
|
 |
